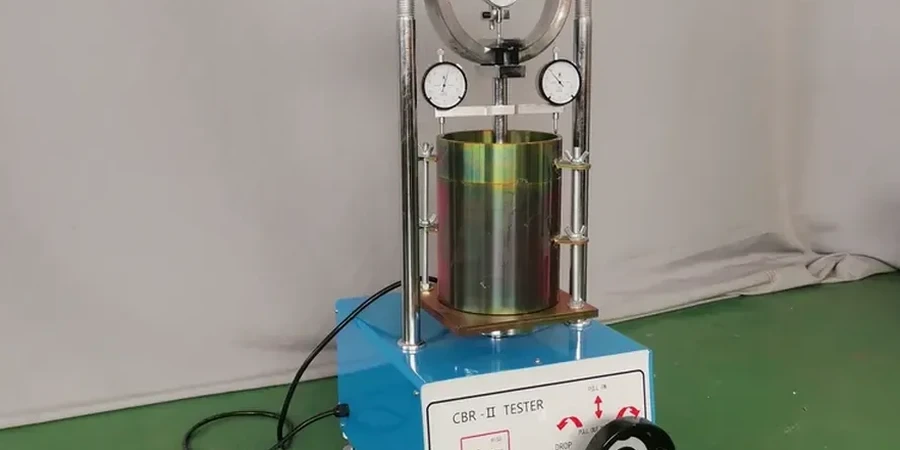

Nottingham's expansion from its medieval sandstone foundations beneath the castle to today's sprawling suburbs across the Trent Valley has created a complex geotechnical patchwork. The city sits on a transition zone where Triassic Sherwood Sandstone outcrops give way to thick sequences of glacial till and river terrace gravels, a setting that demands precise subgrade evaluation. When Transport for Nottingham or the County Council commissions a new carriageway, the in-situ variability of these deposits makes the CBR road test invaluable for field correlation, but the definitive soaked strength parameters come from the controlled environment of the laboratory. Our facility runs the California Bearing Ratio test under strictly controlled moisture and density conditions, providing the design CBR value that feeds directly into the flexible pavement design thickness calculations for roads that must withstand frequent freeze-thaw cycles and the heavy bus traffic along routes like the A52 and A6005.
A single soaked CBR value below 2% in Mercia Mudstone can double the required subbase thickness on a Nottingham distributor road.
Service characteristics in Nottingham
Risks and considerations in Nottingham
A dual carriageway widening on the outskirts of West Bridgford encountered a lens of weathered Mercia Mudstone that passed visual classification but produced a soaked laboratory CBR of just 1.8%. The contractor had already placed the capping layer assuming a 5% design value based on nearby trial pits. The result was a six-week delay while the design team re-ran the pavement model and introduced a 350 mm stabilised subbase layer with geogrid reinforcement. The root cause was the mineralogy of the mudstone: the presence of smectite clays, common in the Gunthorpe Formation that underlies parts of southern Nottingham, drove swelling and loss of bearing capacity upon saturation. The laboratory CBR test was the only stage that could reveal this behaviour because the in-situ CBR, performed during a dry summer month, had not exposed the soil to the prolonged wetting that a winter water table would impose. The case underscores why the Highways Agency's DMRB specifies the soaked CBR as the design parameter for all cohesive subgrades in the East Midlands.
Our services
Beyond the standard CBR determination, our Nottingham laboratory provides a suite of supporting tests that strengthen the geotechnical model for pavement design:
Soaked and Unsoaked CBR Comparison
A dual-specimen programme that quantifies strength loss upon saturation, essential for Nottingham sites where the permanent water table lies within 1.5 m of formation level and seasonal fluctuation is pronounced.
CBR with Swell Measurement
Extended 96-hour soak with continuous dial gauge or LVDT logging of vertical swell, reported as percentage of initial specimen height and correlated with Atterberg limits for expansive clay identification.
Proctor Compaction and CBR Package
Combined determination of optimum moisture content, maximum dry density, and CBR at three compaction energies, allowing the engineer to specify a target compaction regime that achieves the required design CBR on site.
Common questions
What does a laboratory CBR test cost in Nottingham?
A single-point soaked CBR test typically falls in the range of £100 to £180, depending on whether the specimen is remoulded to a target density or tested at in-situ conditions. A full package including Proctor compaction and three CBR points will sit at the upper end of that bracket due to the additional preparation and testing time.
Why is the soaked CBR value more critical than the unsoaked for Nottingham roads?
Nottingham's subgrade, particularly the Mercia Mudstone Group clays, is susceptible to significant strength reduction when saturated. The Highways Agency DMRB requires the soaked CBR as the design input because it represents the worst-case condition the pavement will experience during winter months, when the water table rises and drainage systems are under maximum load.
How many CBR specimens should be tested for a typical Nottingham residential road project?
BS 5930 recommends a minimum of three CBR determinations per distinct soil unit encountered along the alignment. For a 200-metre residential road crossing two geological units, for example Sherwood Sandstone residual soil and glacial till, you would expect at least six specimens to capture the variability adequately. The number increases if the route crosses the mapped boundary of the Gunthorpe Formation, where clay mineralogy can change abruptly.
